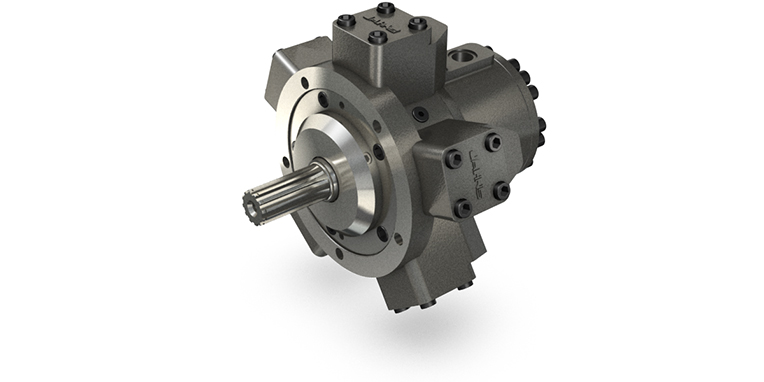

The HMw series is available in 6 sizes with 18 different motor displacements from 188 cm³ to 6,300 cm³/rev / 11.5 in³ to 384 in³/rev.
The motor shafts are available in splined, splined hollow or keyed versions. Also available are hydraulic vented disk brakes, valve blocks with integrated pressure relief and suction valves and contact free device for speed measurement.
The continuous working pressure is between 210 and 280 bar / 3,000 and 4,000 psi and is dependent on the revolution speed.
